Q61F Welded Steel Ball Valve
Product overview
Product Model: Q61F
Nominal diameter: DN15~250mm
Nominal Pressure: PN1.6~6.4Mpa, Class150~600LB
Main materials: WCB, A105, F11, F22, F304, F316, CF8, CF8M, WCC or according to customer requirements.
Applicable temperature: -40 ~220 ~
Connection: welding, butt welding
Drive mode: electric, manual, worm wheel drive, gear drive, etc.
Design and Manufacturing Standard: GB/T 12237-2007
Standard for Structural Length: GB/T 12221-2005
Socket welding standard: GB12224, ANSIB16.25
Pressure and temperature rating: GB/T 12224-2005
Test Inspection Standard: GB/T 13927-2008
Q61F Welded Steel Ball Valve Product uses:
1) Urban gas: gas output pipeline, main line and supply pipeline of each branch line, etc.
2) Central heating: output pipelines, main lines and branches of large heating equipment.
3) Heat exchanger: opening and closing of pipelines and loops.
4) Steel plant: all kinds of fluid pipeline, exhaust gas discharge pipeline, gas and heat supply pipeline, fuel supply pipeline.
5) all kinds of industrial equipment: all kinds of heat treatment pipelines, all kinds of industrial gas and heat pipelines.

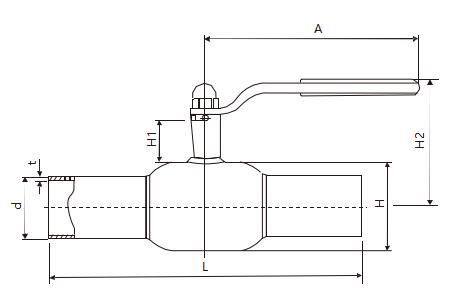

Q61F Welded Steel Ball Valve main connection dimensions:
|
DN |
Bore |
DH |
d |
t |
L |
H1 |
H2 |
A |
kg |
|
A/B |
|||||||||
|
50 |
40 |
89 |
60.3/57 |
4 |
300 |
35 |
135 |
180 |
4 |
|
65 |
50 |
108 |
76.1/76 |
4 |
300 |
35 |
144 |
275 |
5.2 |
|
80 |
65 |
133 |
88.9/89 |
5 |
300 |
44 |
154 |
275 |
6.3 |
|
100 |
80 |
159 |
114.6/108 |
5 |
325 |
50 |
193 |
365 |
11 |
|
125 |
100 |
193 |
139.7/133 |
5 |
325 |
42 |
218 |
365 |
16 |
|
150 |
125 |
219 |
168.3/159 |
6 |
350 |
83 |
343 |
650 |
24 |
|
200 |
150 |
273 |
219/219 |
7 |
400 |
84 |
345 |
800 |
39 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the Q61F Welded Steel Ball Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
